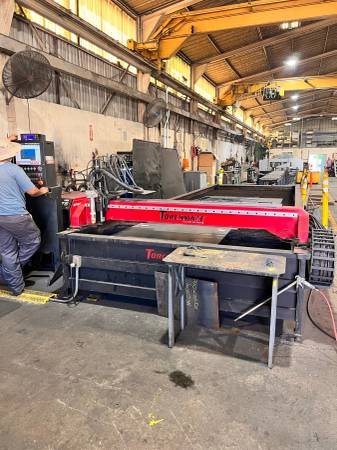

2019 Lincoln Electric Torchmate 6' x 22' CNC Plasma Cutting System - $54,900 (Anaheim, CA)
QR Code Link to This Post
Machine Size
6x22
Model Features
DXF, DWG Direct Import

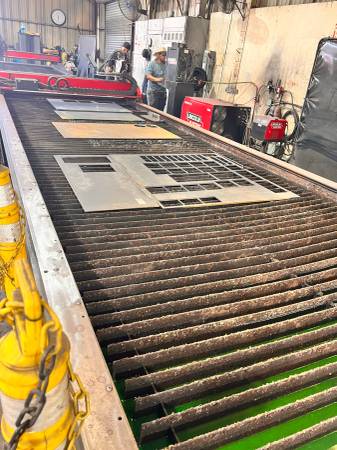

Adjustable water height on water table
Low backlash 5:1 gearboxes
Durable finish
Angled support slats for increased life
Standard Equipment
Water table, Gantry, and Arc Voltage Height Control
Full cable carrier system
Visual Machine Designer Touchscreen Interface
Construction
Steel fabricated gantry with dual y-axis drive
Precision x-axis linear guide—the ultimate in accuracy and durability
Precision ground y-axis guide rails to within .001 tolerances, 63 Micro finish, custom made in the USA
Electronics/Motion System
Two Y-axis 380 oz. in. stepper motors
One X-axis 380 oz. in stepper motor
8 amp micro stepping drives
Motion Controller
User Controls
Burny Phantom II Full featured Visual Machine Designer HMI
Input Air
8 SCFM @ 90 PSI, dry air filtered to minimum 5 micron
Drive System
Rack and pinion X/Y-Axis 5:1 Reduction
Ball Screw/Linear Stage Z-Axis
Traverse Speed
Up to 572 ipm
Cut Speed
Up to 572 ipm
Standard Software
Sigma Nest
Torchmate CAD/CA

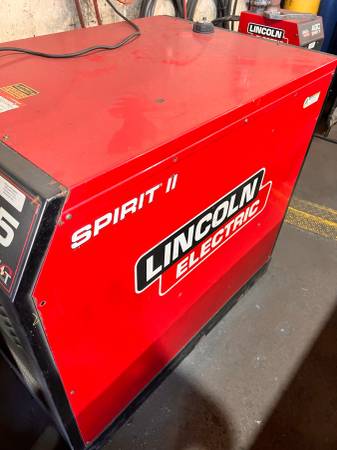

Lincoln Electric Spirit II 275 Plasma Power Source:
Cut Capacity:
Mild Steel: Production Capacity: 38 mm, Maximum Cutting Capacity: 65 mm
Stainless Steel: Production Capacity: 25 mm, Maximum Cutting Capacity: 38 mm
Aluminium: Production Capacity: 20 mm, Maximum Cutting Capacity: 38 mm
Process Amps: 30-275 Amp
Open Circuit Voltage: 325 VDC
Output Voltage: 180 VDC
Cutting Gas (Plasma/Shield):
Mild Steel: Oxygen/Air; Oxygen/Oxygen
Stainless Steel: Air/Air; Air/Nitrogen; H17/Nitrogen; Nitrogen/Air
Aluminium: Air/Nitrogen; Nitrogen/Air
Marking Gas: Argon/Nitrogen
Certification: CSA, CE, CCC
Machine is Clean and in Good Working Condition. In Plant, Under Power. Demos Available upon Request. Youtube Link to Video of machine running is below:
https://www.youtube.com/watch?v=gJMA8e2yDyU
Customer is purchasing some new cutting equipment so the Used Lincoln Electric is no longer needed so they would like to sell it.
Available for Immediate Delivery!!
Buyer is Responsible for Breakdown, Freight & Rigging
Price: $54,900.00 or Best Offer
FOB(Location): Anaheim, CA 92801
Please provide a contact email or telephone # in your reply to this ad if you would like to purchase, schedule demo, etc. Thank you.
***Machine is Sold "As-Is, Where-Is" with No Warranty Expressed or Implied. Buyer is Responsible for Machine Inspection prior to Shipment.
