ECONOLINE - 3Z947 - Sand Blaster Cabinet - W/ Large Dust Collector - $1,000 (Taft)
condition:
good
make / manufacturer:
ECONOLINE
model name / number:
3Z947
size / dimensions:
(W) x 40” x (D) 40” x (H) 32”
QR Code Link to This Post

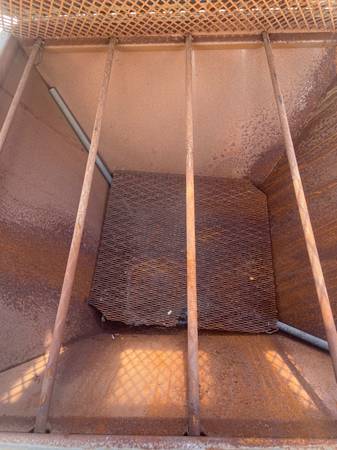

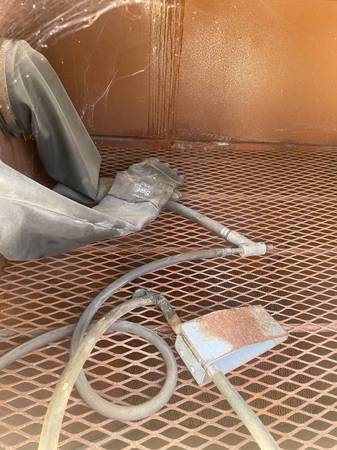

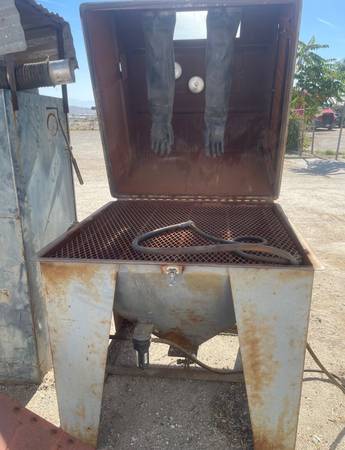

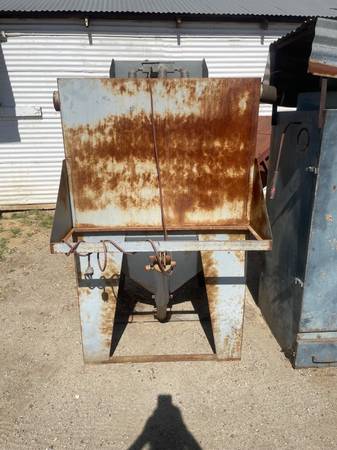

The ECONOLINE Abrasive Sand Blaster Cabinet With Large Dust Collector is being sold as "USED.” Both Items have some signs of cosmetic wear and scratches and come with only Qty. (1x) Dust Collector Hose Line, Foot Pedal, Nozzle and Blower. Both Items are being sold “AS IS” and are for FREE LOCAL PICK UP ONLY!!! SEE PICTURES.
Abrasive Sand Blaster Cabinet Description:
Heavy-duty floor-mount siphon-feed sand blasting cabinets have a durable steel body and legs for blasting operations when working with large and small workpieces. Also known as suction blasting cabinets, these siphon-feed cabinets have few parts and require less maintenance than pressure feed systems. Abrasive media is siphoned, or pulled, into the cabinet through a blasting nozzle, where it is distributed across workpieces in the cabinet.
Abrasive Sand Blaster Cabinet Specifications:
Brand: ECONOLINE
Size: 40’ x 40’
Manufacturer Part #: 3Z947
Manufacturer Model #: 101698G-A
Product Type: Abrasive Sand Blaster Cabinet
Cabinet Material: Steel
Mounting Location: Floor
Feed Type: Siphon
Compatible Abrasive Media: Aluminum Oxide; Coal Slag; Corn Cobs; Glass Beads; Glass Beads/Aluminum Oxide; Silicon Carbide
Maximum Air Flow: 12 cfm
Maximum Air Pressure: 110 psi
Work Area Width x Depth x Height: (W) x 40” x (D) 40” x (H) 32”
Cabinet Opening Type: Side Door / Top Door
Side Door Location: Right
Top Door Width x Height: (W) 40” x (H) 40”
Window Width x Height: (W) 24” x (H) 12”
Overall Width x Depth x Height: (W) 44” x (D) 74” x (H) 82”
Country of Origin: USA
INCLUDES: ***DUST COLLECTOR HOSE LINE / FOOT PEDAL / NOZZLE / BLOWER***
Large Dust Collector Motor Specifications:
Brand: Dayton
Motor Type: Jet Pump Motor
Manufacturer #: B95 3
Model #: 6K690C
Horse Power: 1
RPM: 3450
Phase: 1
Volts: 115/230 V
Amps: 12.0/6.0
Hertz: 60
FR: 56C
ENCL: ODP
BRG: Ball/Slv
Max Ambient Temperature: 40° C
SF: 1.4
SFRA: 15.0/7.5
MTR REF: C55CXGFG-3583
Overall Length x Width x Height: (L) 40” x (W) 25” x (H) 88”
Country of Origin: USA
1x) ECONOLINE - 3Z947 - Abrasive Sand Blaster Cabinet - W/ Large Dust Collector - $1000.00
***FREE LOCAL PICK UP ONLY!!!***
***Buyer is responsible for "ITEM PICK UP ONLY" and to arrange scheduling upon purchase.***
