Graco - Manzel GBL 7500 - 3/8” Press. Feed Lube Pump - Part # 24J399 - $150 (Taft)
condition:
new
make / manufacturer:
Graco - Manzel
model name / number:
GBL 7500 / Part # 24J399
size / dimensions:
3/8"
QR Code Link to This Post

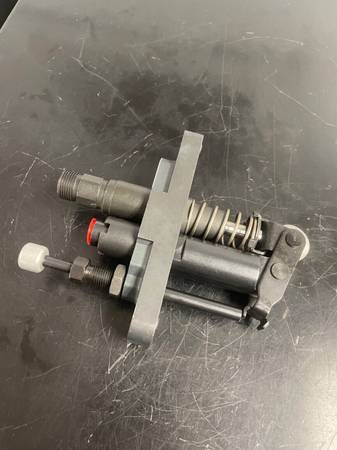

The Graco Manzel GBL 7500 Pressure Feed Lubricator Pump is being sold as “NEW OPEN BOX” and is unused but, does have its original packing. Item is in “NEW LIKE EXCELLENT” condition with minimal signs of wear and scratches due to storage. Item is fully operational and functions as intended. Item also comes with one mounting bracket gasket and two 7/16” mounting bracket bolts and washers. SEE PICTURES.
Product Features:
The Graco Manzel GBL 7500 Pressure Feed Lubricator Pump is engineered for long-life and maximum flexibility for easy system integration. It has been improved to perform in best-practice applications for a durable solution that is hard to beat.
For force-feed oil lubrication systems.
Mechanically driven from camshaft in reservoir.
Adjustable from 1 to 27 drops per stroke and develop pressures up to 7,500 psi (517 bar).
Rugged construction for high quality performance and durability with easy to adjust pump output.
1/4" (6 mm) NPT inlet to improve flow in high viscosity, cold environments.
Double Ball Outlet Check reduces ball travel.
Improved O-ring seals to eliminate leak paths.
Patent pending Built-in-Socket spreads force evenly over piston tip to avoid bending and wear for long piston and rocker life.
Ball bearing roller has superior rotation to help protect camshaft from damage. Larger diameter roller spreads load pressure to reduce wear and improve pump life.
Product Specifications:
Manufacturer: Graco
Manufacturer Part Number: 24J399
Series: GBL 7500
Type: Mechanical Piston Pump
Application: In-Plant Machinery
Compatible Material: Oil
Max. (PSI) Working Pressure: 3500
Max. (Bar) Working Pressure: 241
Max. (kPA) Working Pressure: 24100
Max. (CPM) Cycle Rate: 50
Max. (in³) Output Volume: 0.054
Max. (MPa) Working Pressure: 24.1
1x) Graco - Manzel GBL 7500 - 3/8” Press. Feed Lube Pump - Part # 24J399 - $150.00
