"LOT OF 2" REOTEMP - Indust. Gauge - PT45T - 0-3000 PSI - 4.5” Face - $60 (Taft)
condition:
like new
make / manufacturer:
REOTEMP
model name / number:
UNKNOWN
size / dimensions:
4.5” Face
QR Code Link to This Post

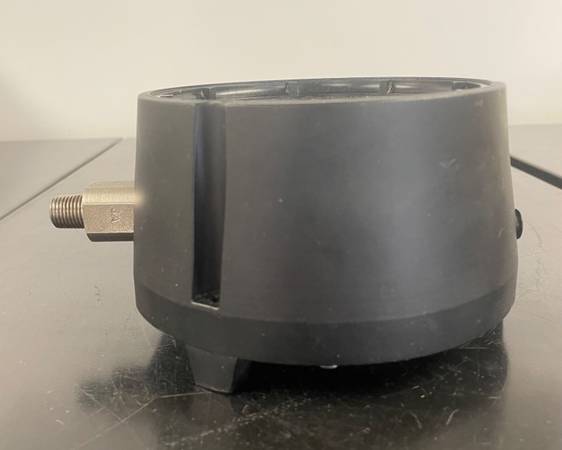

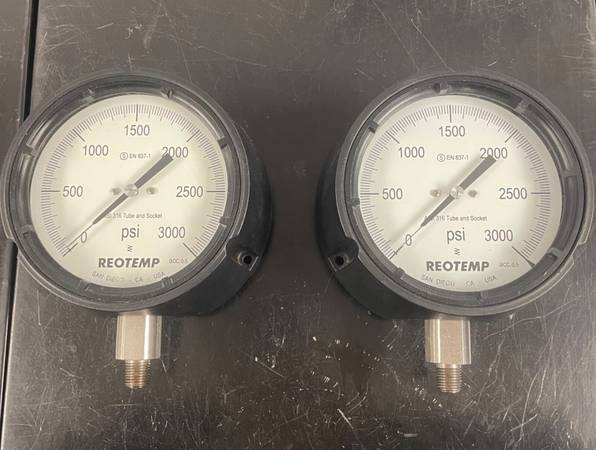

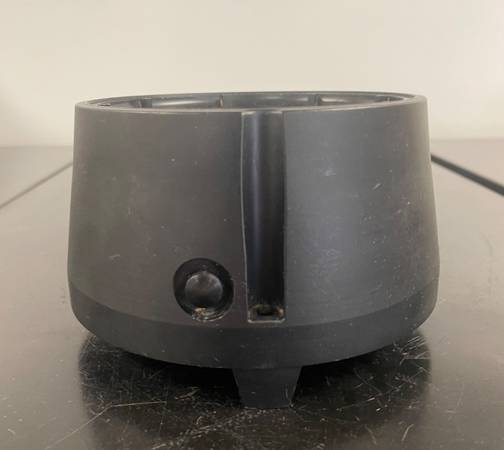

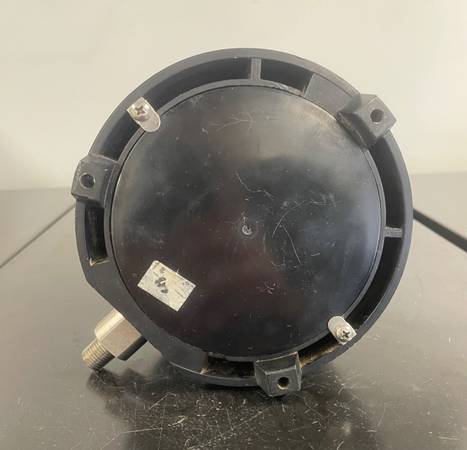

The REOTEMP Industrial Process Gauge is being sold as “USED” with minimal signs of wear and scratches due to storage. Item does not have its original packaging. SEE PICTURES.
Product Description:
The REOTEMP Industrial Process Gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries. The solid front and blowout back provides a high degree of user safety. Note: For highly-corrosive, high-temperature, or severe service applications a diaphragm seal is recommended.
Product Specifications:
Gauge Series: 4.5″ Solid Front Industrial Process Gauge, Series PT45T
Process Connection: 1/2″ NPT
Mount Options: Bottom Center Connection
Gauge Range Units: 0-3000 PSI
Fill Type: Dry Fill
Accuracy: ±0.5%, Grade 2A (10k – 20k psi = 1% upscale, 2% downscale)
Ambient Limits: -40°F/150°F
Process Limits: -40°F/250°F
Process Limits W/ Diaphragm Sea: -60°F/400°F (Direct Mount) -110°F/750°F (Remote Mount or Cooling Tower)
Socket: 316 Stainless Steel
Lens: Tempered Safety Glass (Standard)
Case: Reinforced Thermoplastic (Phenolic) or 316SS
Ring: Phenolic Turret Twist-Off or SS Twist-Off Bayonet
Dial: White Aluminum, Black Letters
Case-to-Socket: O-Ring
Fillable: Yes
Restrictor Screw: Yes, removable.
Maximum Working Pressure: Stable = 100% Momentary = 130% of scale
Environmental Protection: NEMA 4X/IP65
Scale color: White With Black Markings
"LOT OF 2" REOTEMP - Indust. Gauge - PT45T - 0-3000 PSI - 4.5” Face - $60.00
