Murphy - M5081-C - 2” Alum. Electromech. Fuel Shutoff Valve (55700010) - $400 (Taft)
condition:
like new
make / manufacturer:
Murphy
model name / number:
M5081-C / (55700010)
size / dimensions:
2" D
QR Code Link to This Post

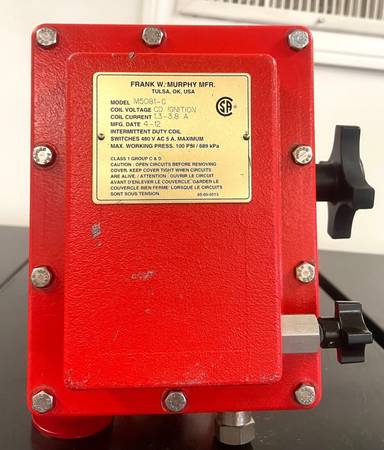

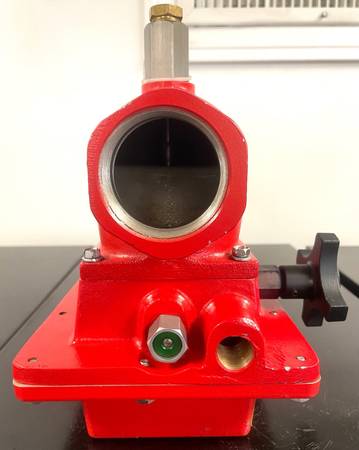

The Murphy 2” Aluminum Electromechanical Fuel Shutoff Valve is being sold as “NEW OPEN BOX” and is unused but, does not have its original packing. Item is in “NEW LIKE EXCELLENT” condition with minimal signs of wear and scratches due to storage. SEE PICTURES.
Product Description:
The Murphy Fuel Shutoff Valve M5081-C is a 2-inch (51 mm) valve with two NPT connections. It has two SPDT snap-switches. It is a semi-automatic device for shutdown of natural gas-fueled engines. The valve is opened manually and closes when the electromagnet is energized and trips the latch. The valve can be closed manually by turning the disconnect knob.
Product Features:
Instant Response to Shut Off Signal
Positive Valve Closure
Vents Gases Trapped After Shutdown
Product Specifications:
Murphy Part No.: M5081-C
MPN: 55700010
Series: M50 Series
Base Model: M5081
Trip Coil: CD Ignition
Valve Body: Sandcast aluminum, painted red (corrosion resistance)
Diameter: 2 in. (51 mm)
Valve Seat: Buna-N
Maximum Pressure Rating: 100 psig (689 kPa) [6.89 bar]
Coil Voltage: CD Ignition
Coil Rating: Intermittent duty; coil type must match power source
CD Ignition Coil Resistance: 72 Ω
CD Primary Voltage Current: 1.3-3.8 A
Wiring: Terminal Blocks
Snap-switch Rating: 5 A @ 480 VAC
Laboratory Approval: CSA listed for Class I, Groups C and D Hazardous Locations. 5 amps max.; intermittent duty; switch contacts rated 5 A @ 480 VAC max.
MFG Date: 4/2012
1x) Murphy - M5081-C - 2” Alum. Electromechanical Fuel Shutoff Valve - (55700010) - $400.00
