REOTEMP - 3 Hole Front Flange Press. Gauge - 0-1000 PSI - 4” Face - $20 (Taft)
condition:
like new
make / manufacturer:
REOTEMP
model name / number:
UNKNOWN
size / dimensions:
4" Face
QR Code Link to This Post

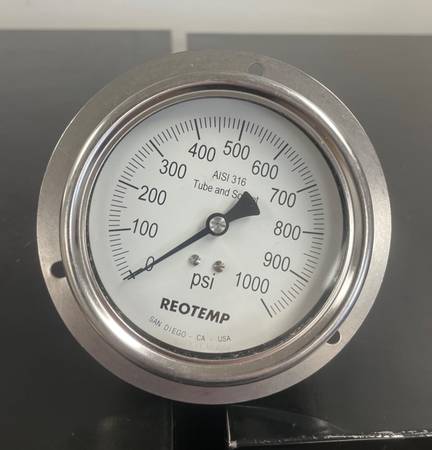

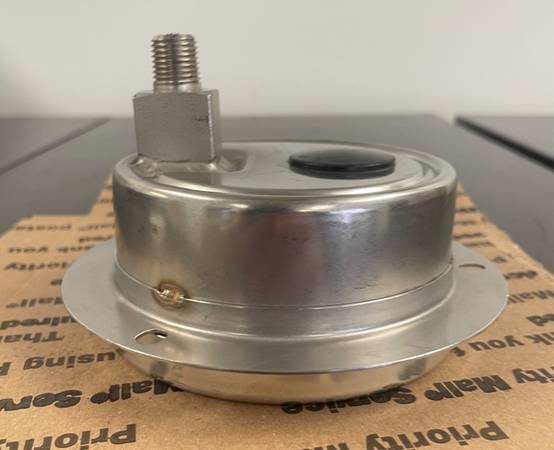

The REOTEMP 3 Hole Front Flange Pressure Gauge is being sold as “USED” with minimal signs of wear and scratches due to storage. Item does not have its original packaging. SEE PICTURES.
Product Description:
The REOTEMP 3 Hole Front Flange Pressure Gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries. The solid front and blowout back provides a high degree of user safety. Note: For highly-corrosive, high-temperature, or severe service applications a diaphragm seal is recommended.
Product Specifications:
Gauge Series: 4″ 3 Hole Front Flange Pressure Gauge, Series PT45
Process Connection: 1/2″ NPT
Mount Options: Welded Panel Back Center Connection
Gauge Range Units: 0-1000 PSI
Fill Type: Dry Fill
Accuracy: ±0.5%, Grade 2A (10k – 20k psi = 1% upscale, 2% downscale)
Ambient Limits: -40°F/150°F
Process Limits: -40°F/250°F
Process Limits W/ Diaphragm Sea: -60°F/400°F (Direct Mount) -110°F/750°F (Remote Mount or Cooling Tower)
Socket: AISI 316 Stainless Steel
Lens: Tempered Safety Glass (Standard)
Case: 316SS 3-hole front flange welded to back of the case
Dial: White Aluminum, Black Letters
Fillable: Yes
Restrictor Screw: Yes, removable.
Maximum Working Pressure: Stable = 100% Momentary = 130% of scale
Environmental Protection: NEMA 4X/IP65
Scale color: White With Black Markings
REOTEMP - 3 Hole Front Flange Press. Gauge - 0-1000 PSI - 4” Face - $20.00
