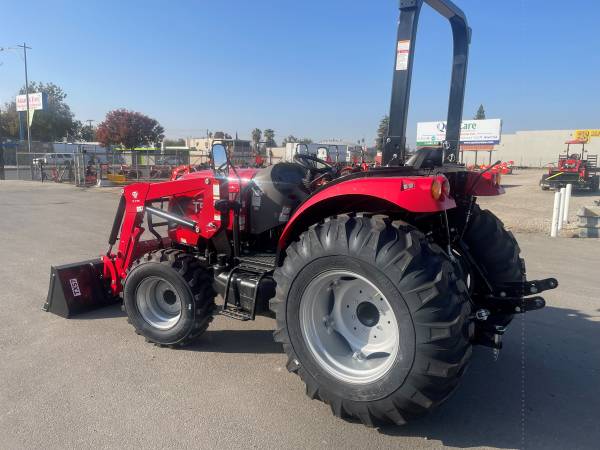

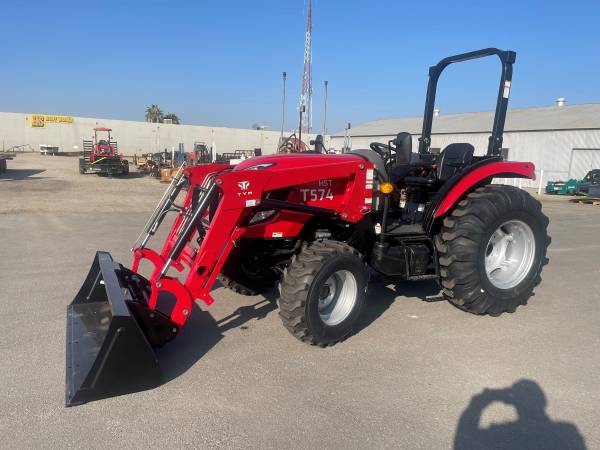

TYM T574H tractor - $36,835 (Bakersfield)
1201 Union Ave
QR Code Link to This Post
Steering Hydrostatic
Clutch Dry Single Plate
Brake Wet Disc
Gross Engine Power 55 hp
Engine
Engine manufacturer Kukje A2300T3
Type Turbo
Gross engine power 55 hp | 41 kW
PTO power 44.7 hp | 32.9 kW
Rated engine speed 2600 rpm
Number of cylinders 4
Displacement 139.5 cu. in.
Air cleaner Dual Dry
Alternator 12V, 70A
Fuel system IDI
Powertrain
Transmission type Hydrostat
No. of speeds 3-Range
Max. traveling speed 15.1 mph
Brakes Wet Disc
Steering Hydrostatic
Clutch Dry Single Plate
Max. traveling speed 15.1 mph
Hydraulic System
Pump type Dual Gear Pump
Implement flow 7.66 gpm
Steering flow 4.25 gpm
Total flow 11.91 gpm
Category, 3-point hitch I
Hitch lift capacity 3822 lb
Lift control type Position/Draft
No. of standard remote valves 2
PTO
PTO type Independent
Control Electric/Hydro
PTO rear 540 rpm
Capacities
Fuel tank 17.0 gal
Coolant 6.9 qt
Crankcase 6.8 qt
Transmission/Hydraulics system 9.2 gal
Front axle 10.5 qt
Dimensions & Weights
Overall length with 3-point hitch 141.3 in.
Overall width 63.8 in.
Wheelbase 76.2 in.
Height to top of ROPS 102.1 in.
Min. ground clearance 13.8 in.
Minimum turn radius with brakes 121.2 in.
Min. turn radius without brakes 131.5 in.
Weight with ROPS 3887 lb

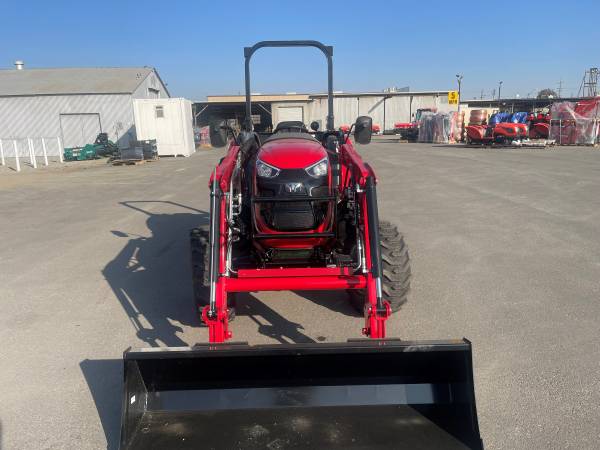

TX57 Front-End Loader
The TX front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the TX front-end loader can help you get your tasks done more efficiently.
Lift height 109.4 in. / 2780 mm
Lift capacity 2790 lb / 1266 kgf
Front End Loader Bucket 72"
Bucket capacity 11.3 cu. ft / 0.32 cu. m
Max. lift height under level bucket 101 in. | 2566 mm
Clearance with bucket dumped 83.6 in. | 2123 mm
Reach at maximum lift height 17.6 in. | 447 mm
Max. dump angle 50°
Reach with bucket on ground 71.5 in. | 1815 mm
Max. rollback angle 35°
Digging depth 5.5 in. | 140 mm
Dealer:
San Joaquin Tractor
1201 Union Ave
Bakersfield, CA 93305
www.sanjoaquintractor.com
661-324-4517
